Our Range Of Services

The mold design is started with a 2d layout, basic information will be drawn out, such as mold size, gating type, parting line, ejection way, cavities layout, mechanical design, accessories used, steel of each component used, etc.
[Open/Close]

In order to make all the plastic moulds well, Ideal Group Mould focus on the feasibility analysis of plastic parts forming, the quality of mould design and the control of the dimension of mould parts.

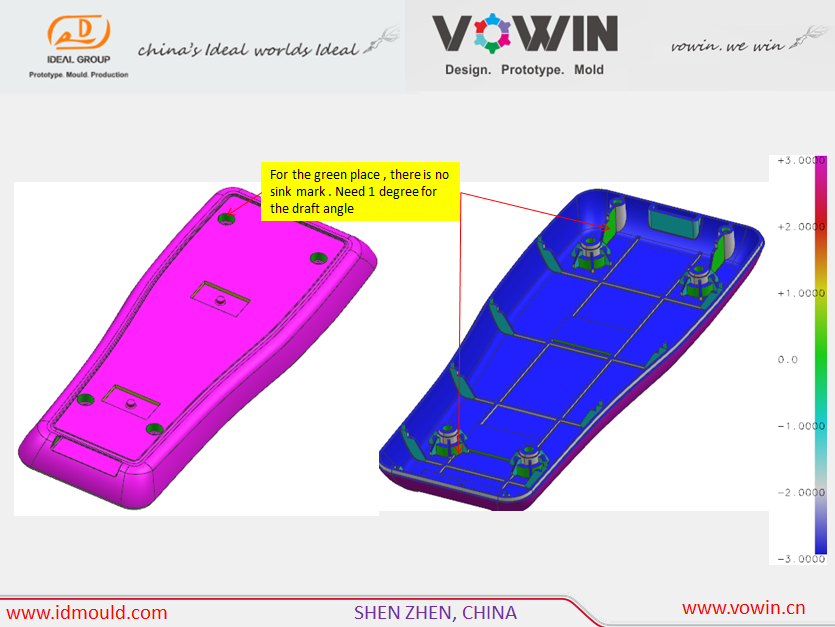

1. Feasibility analysis of plastic parts forming, we check every plastic parts to ensure that there are no defects in the design of plastic parts. Because the design defect of plastic parts is a very big problem when the mould is made, which often leads to irreparable mistakes and delays.
2. Plastic mold design analysis, when mold design, we take into account the injection process, processing methods, assembly methods and user maintenance convenience. Because good moulds are from good design.
3. Strict dimensional control of die parts. Before finishing, tolerance and processing flow are stipulated on the 2D drawings of each part. Each step of processing is strictly self-checked and sent for inspection according to the tolerance on the drawings.

3D design in detail and NC programming will follow after the 2d design is approved by the customer. Depends on the complexity, a complete mold design would need 3-7 days. Some of the complex molds require mold flow analysis or several updates as per feedback from the customer, it could take much more time.
[Open/Close]

In order to make all the plastic moulds well, Ideal Group focus on the feasibility analysis of plastic parts forming, the quality of mould design and the control of the dimension of mould parts.
1. Feasibility analysis of plastic parts forming, we check every plastic parts to ensure that there are no defects in the design of plastic parts. Because the design defect of plastic parts is a very big problem when the mould is made, which often leads to irreparable mistakes and delays.
2. Plastic mold design analysis, when mold design, we take into account the injection process, processing methods, assembly methods and user maintenance convenience. Because good moulds are from good design.
3. Strict dimensional control of die parts. Before finishing, tolerance and processing flow are stipulated on the 2D drawings of each part. Each step of processing is strictly self-checked and sent for inspection according to the tolerance on the drawings.

What Are Injection Mold Design?
Mold design is a basic but important part in injection molding, regardless of the size and position of the gate, the size of the shear edge, flow assist, cooling and ejector technology, all affect the final mold injection results. It is no exaggeration to say that mold design has a significant impact on the cost-effectiveness and quality of molded parts and your products.
[Open/Close]

There's none about the best mould design in the world, because there's still space for it to be optimized, we should put much time on mould designs' quality inspection, quality improvements, again, 5 minutes on the mould design maybe equal 5 weeks in the workshop. So a good mould manufacturing is based on the very rigorous mould design.
